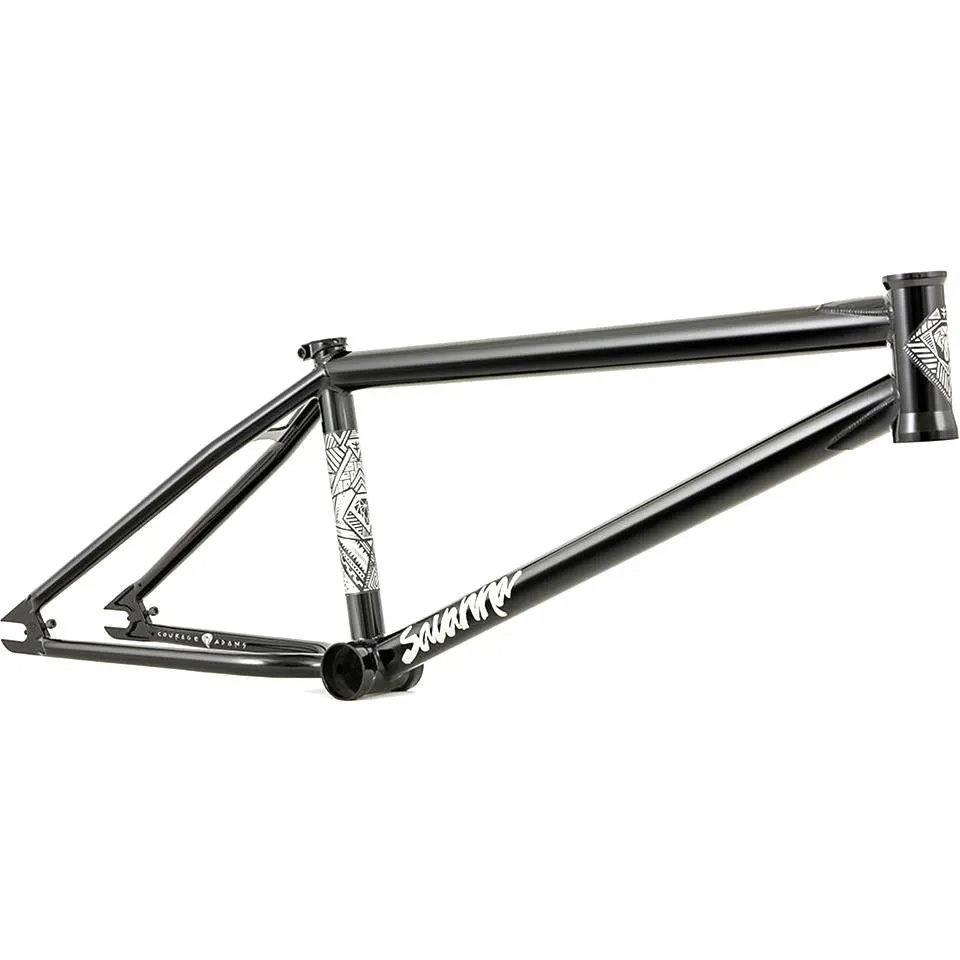

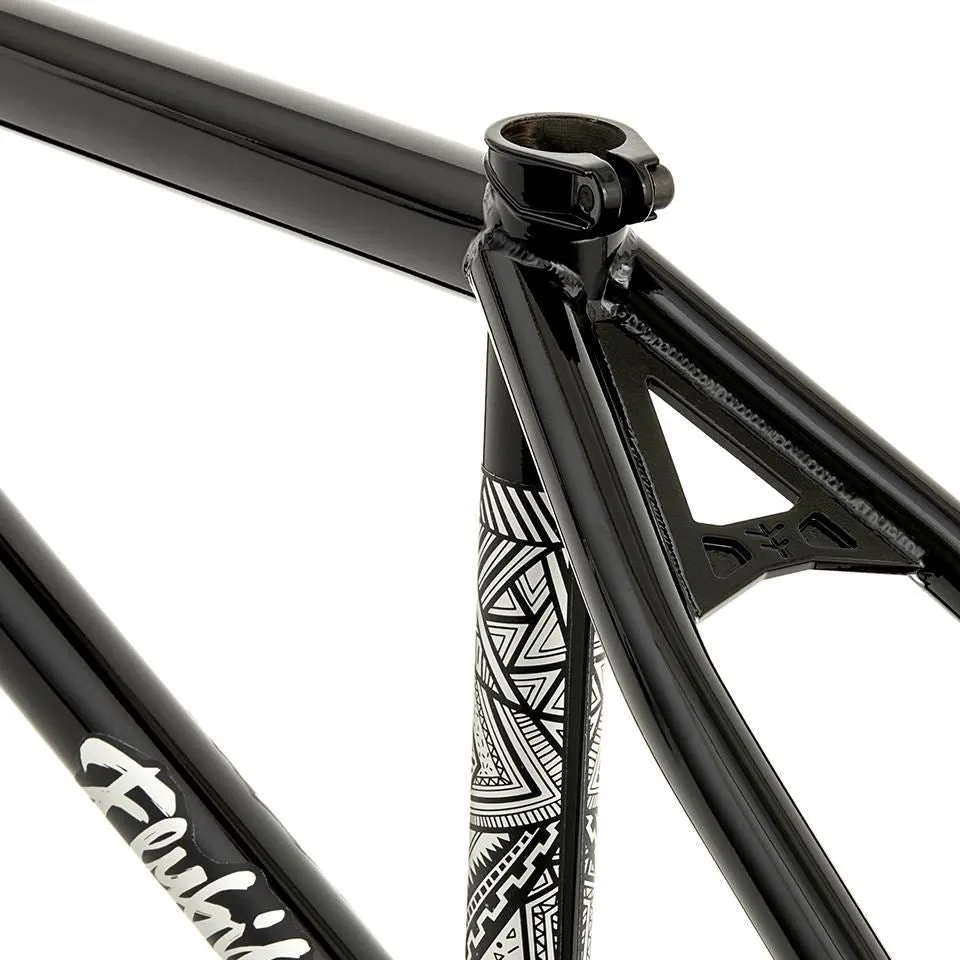

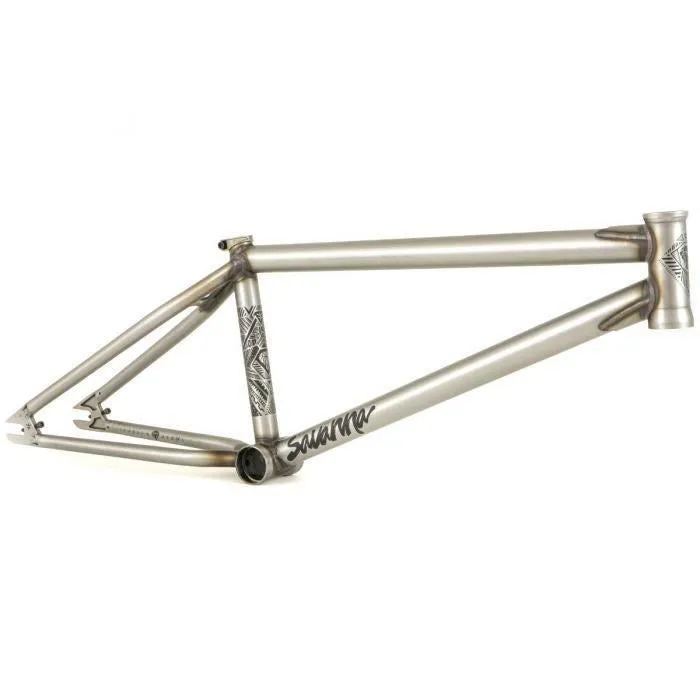

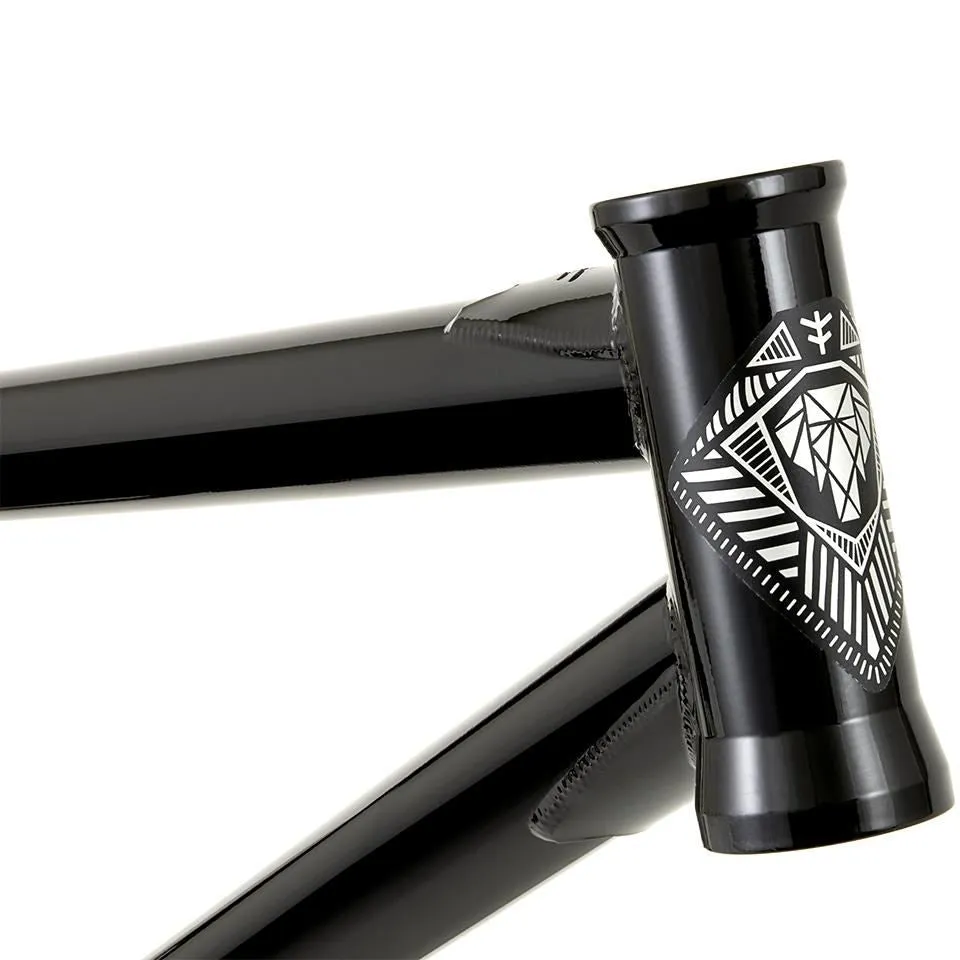

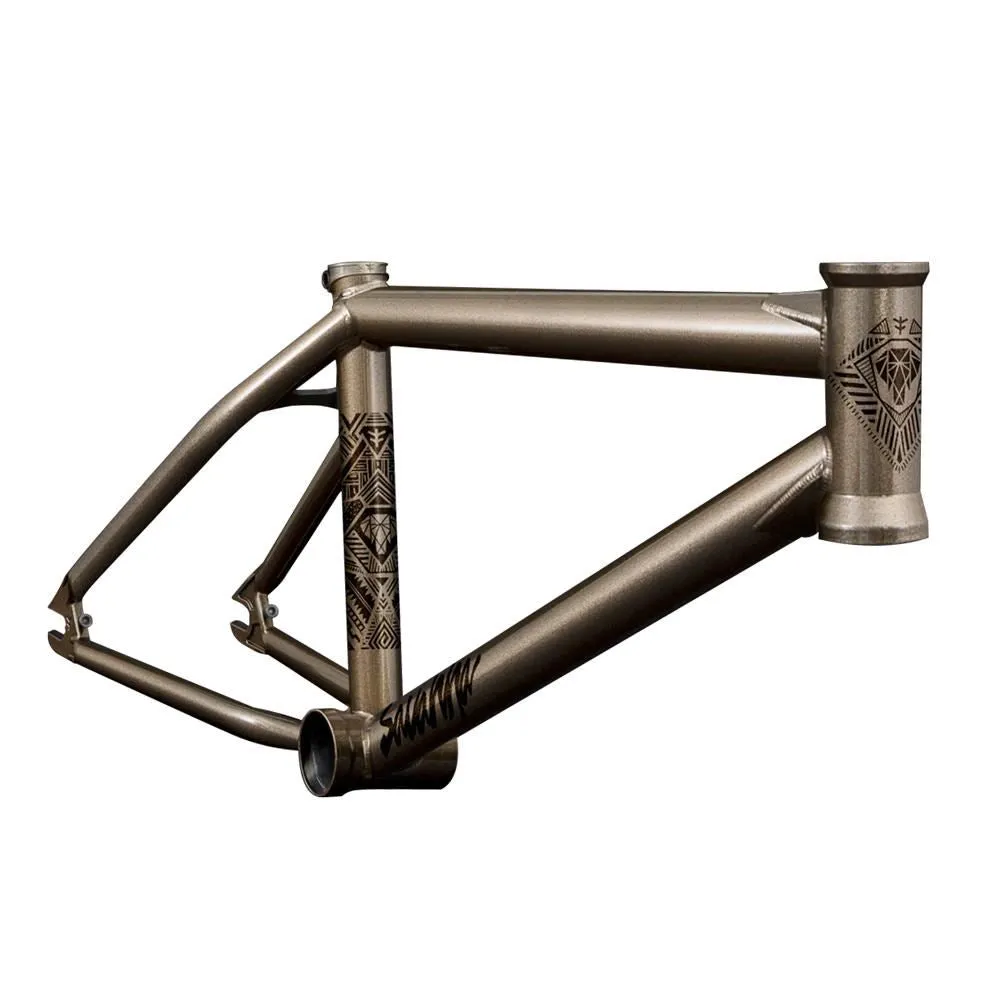

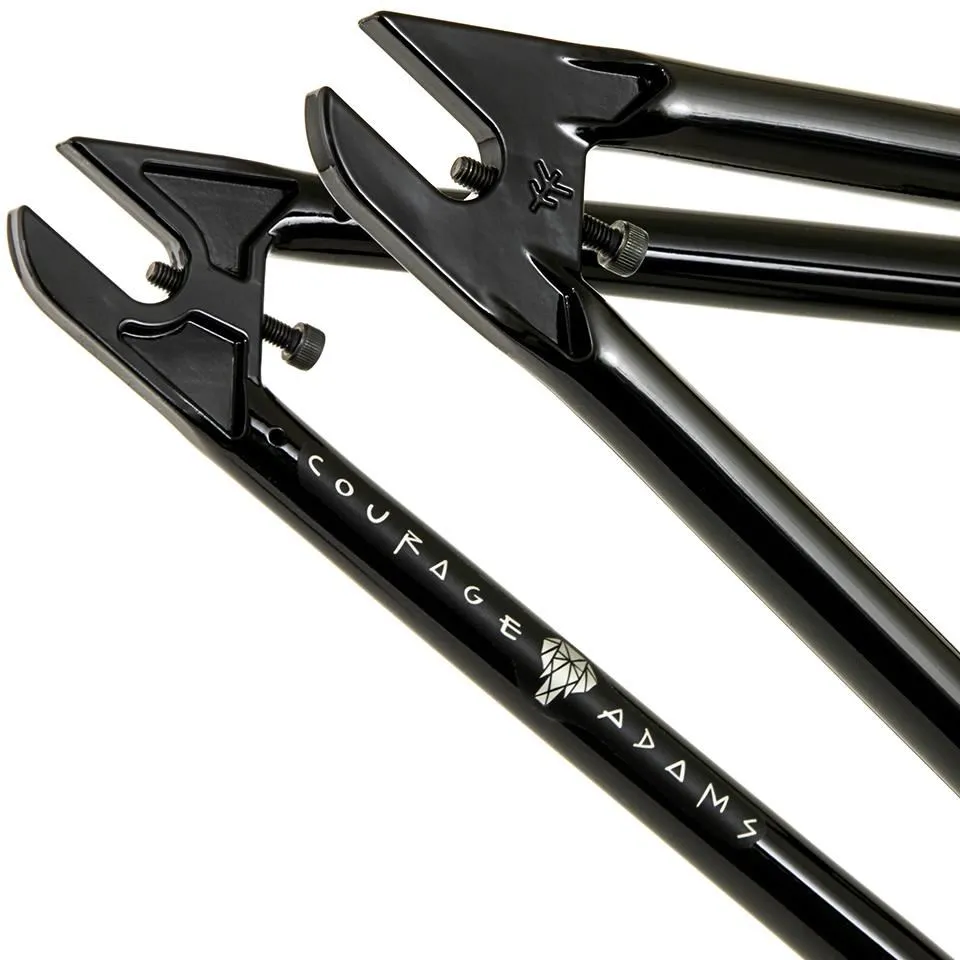

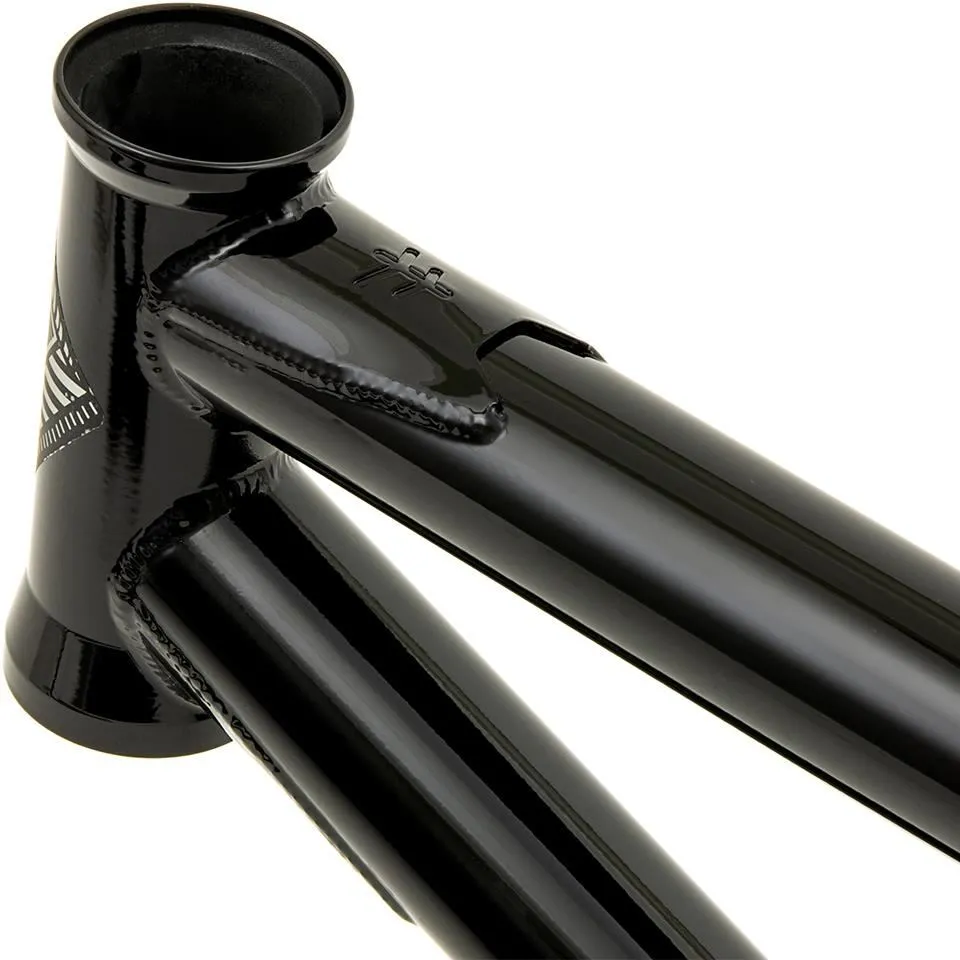

The Courage Adams signature Savanna frame sticks with its original geometry. but utilises new tubing specs that help reduce the overall weight of the frame without sacrificing any of the strength. The frame features internal and external gussets. multi-butted and tapered tubing. an Investment Cast seat post clamp with the Horizontal Cut System and Investment Cast Dropouts with integrated chain tensioners. It is brakeless. so there are no mounts or guides.

###section###

Product Specs

1. MATERIAL: 4132 Chromoly
2. HEAD TUBE ANGLE: 75.5°
3. SEAT TUBE ANGLE: 71°
4. CHAIN STAY LENGTH: 13
5. BB HEIGHT: 11.75
6. WHEEL SIZE: 20
7. STANDOVER HEIGHT: 9.25
8. DROPOUT SIZE: 14mm
9. HEADSET TYPE: Integrated
10. BB TYPE: Mid
11. BRAKE MOUNTS: N/A
12. GYRO TABS: N/A
13. WEIGHT: 5.3lbs

###section###

Product Highlights

• Responsive Geometry with Short Backend and Steep Headtube
• Best suited to Street and Park riding
• High-quality Chromoly construction
• Gusseted tubing for added strength
• Built in chain tensioners
