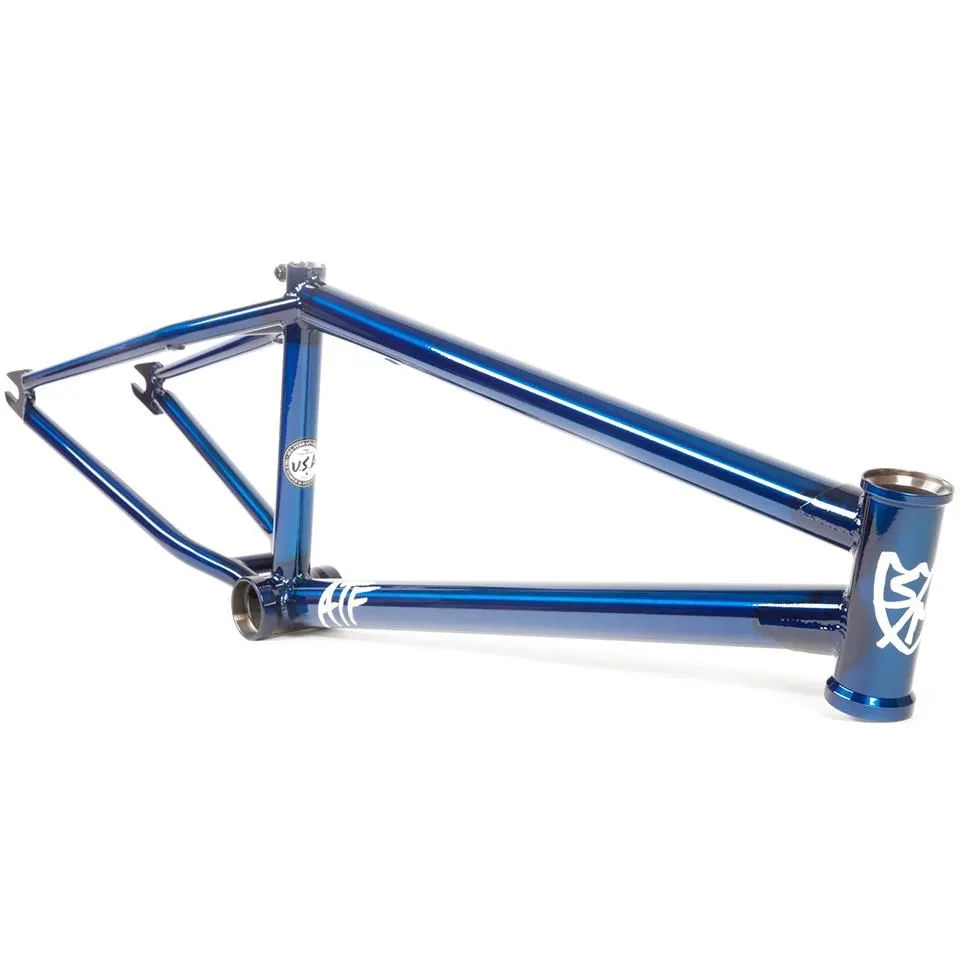

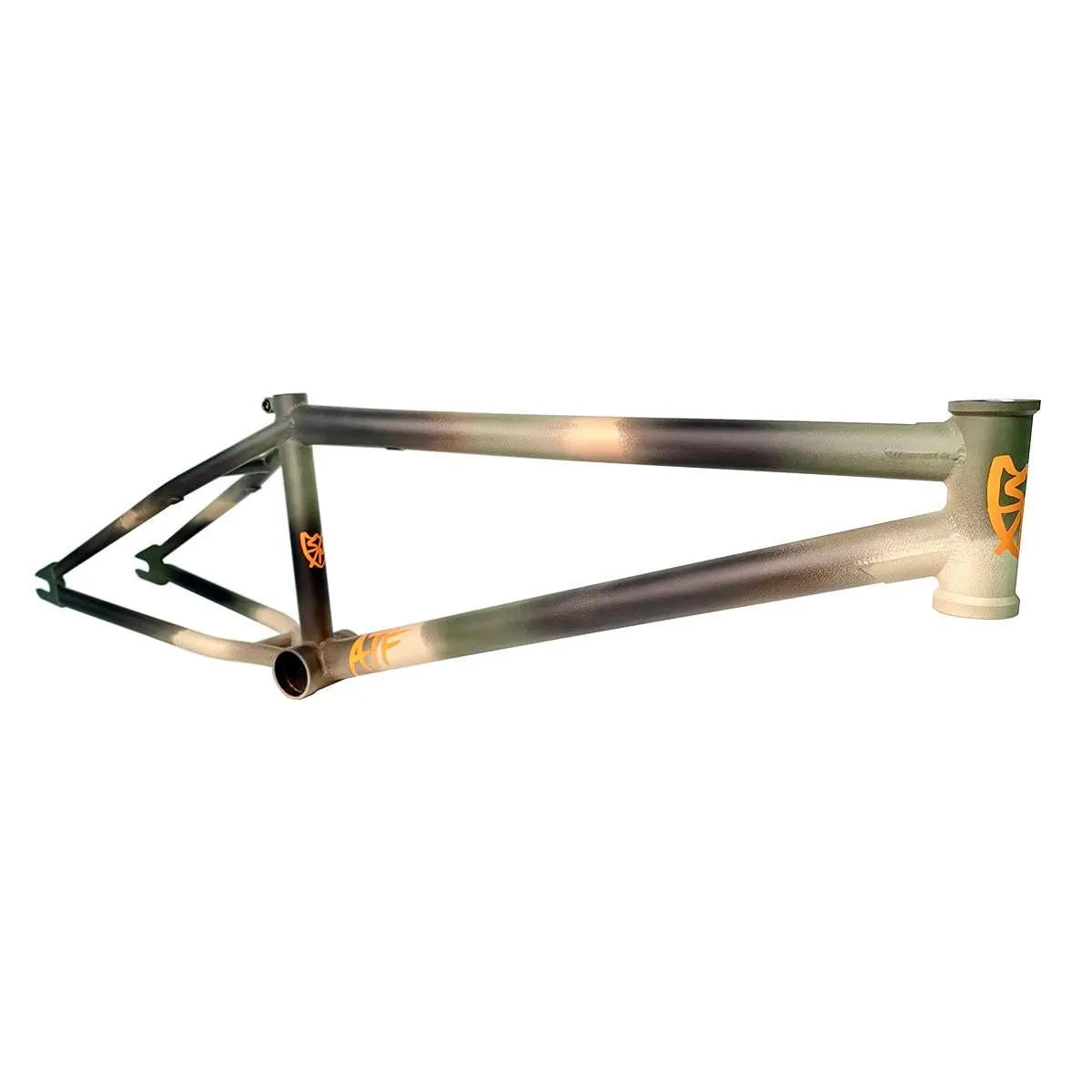

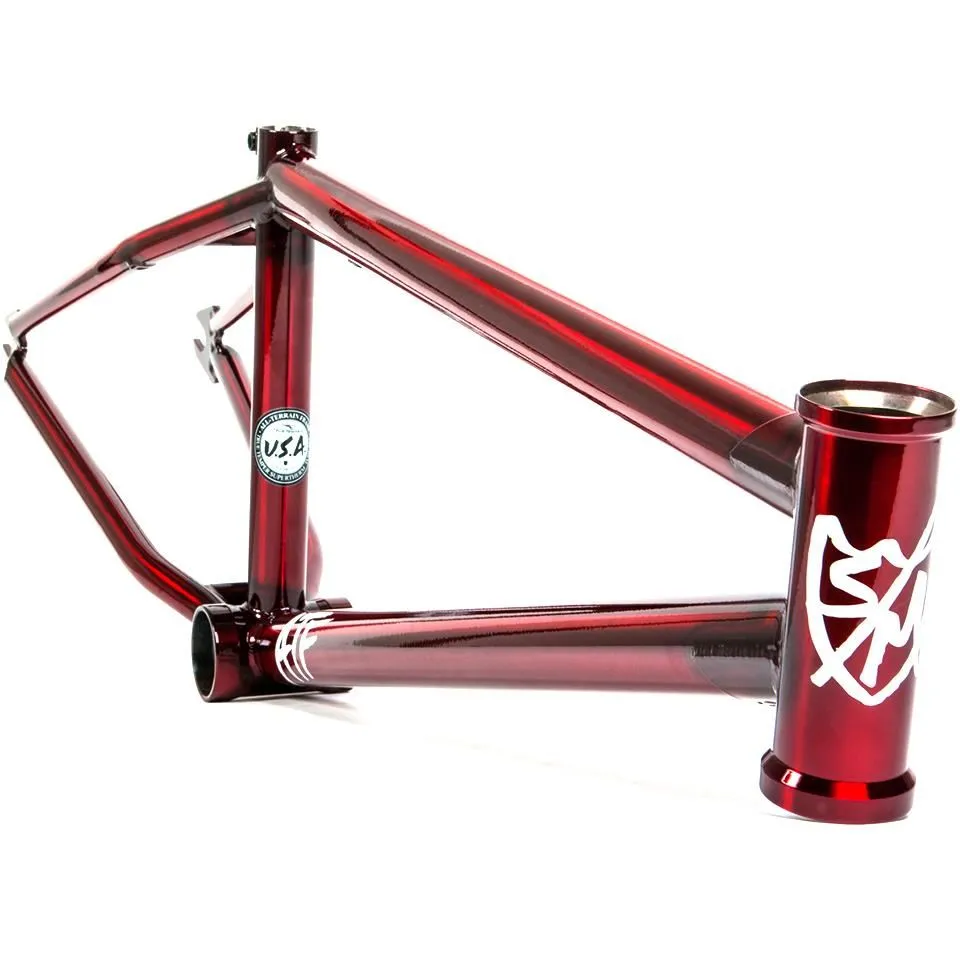

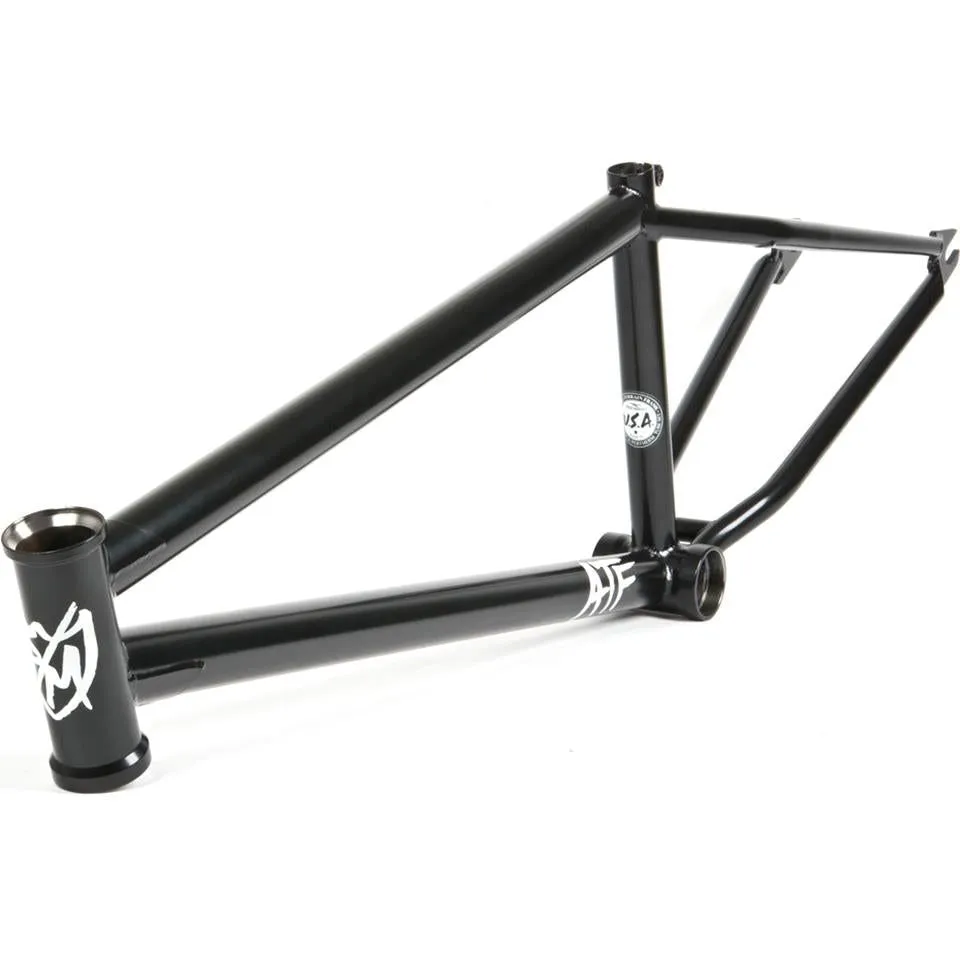

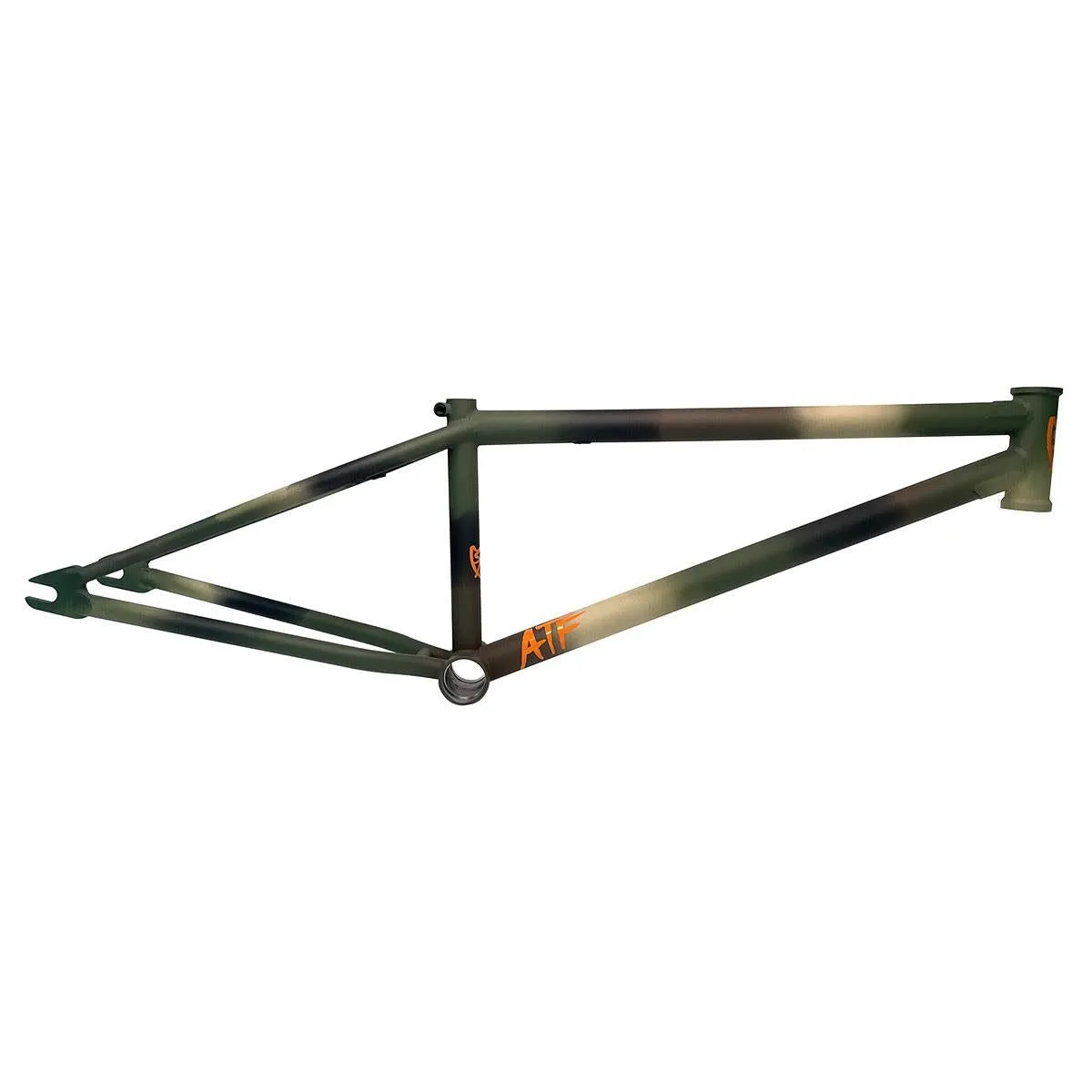

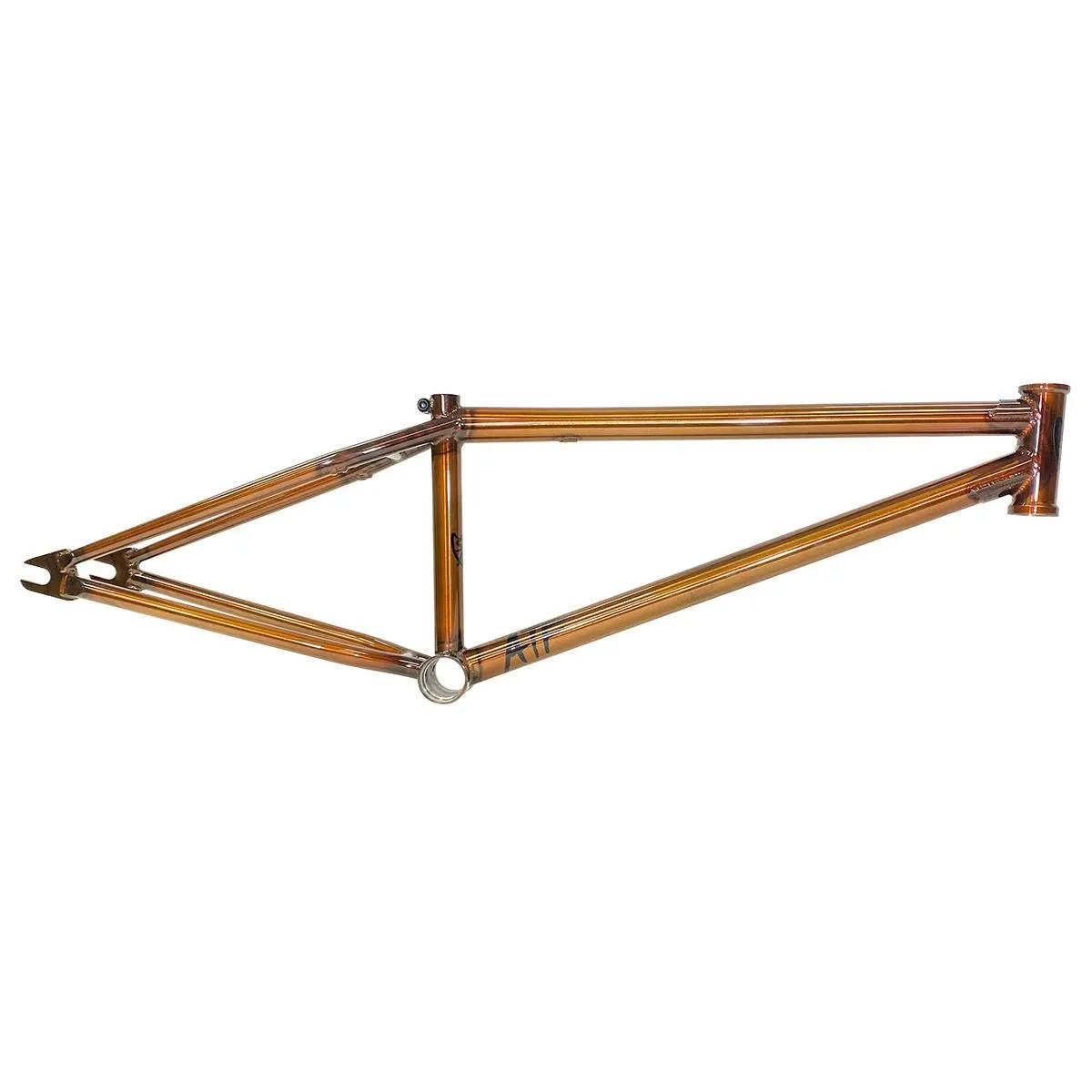

S&M's iconic ATF frame now comes in a 24 version. This is the base model of all of S&M's lastest signature frames.

The ATF (Alcohol. tobacco and firearms) uses S&M's standard heat treated supertherm tube set with a tapered and butted top tube for extra strength. dent resistant down tube. tapered rear stays with massive rear tire clearance and heat treated micro dropouts.

###section###

Product Specs

1. MATERIAL: Chromoly
2. HEAD TUBE ANGLE: 74.5°
3. SEAT TUBE ANGLE: 71°
4. CHAIN STAY LENGTH: 14.7 - 15.5
5. BB HEIGHT: 13
6. WHEEL SIZE: 24
7. STANDOVER HEIGHT: 9.5
8. DROPOUT SIZE: 14mm
9. HEADSET TYPE: Integrated
10. BB TYPE: Mid
11. BRAKE MOUNTS: Removable (Sold separately)
12. GYRO TABS: None
13. WEIGHT: 5.54lbs (2.5kg)

###section###

Product Highlights

• Responsive geometry with short backend and steep headtube
• Best suited to street and park riding
• High-quality chromoly construction
• Made in the USA
• Quick and responsive back end
